SAMPLING VALVES

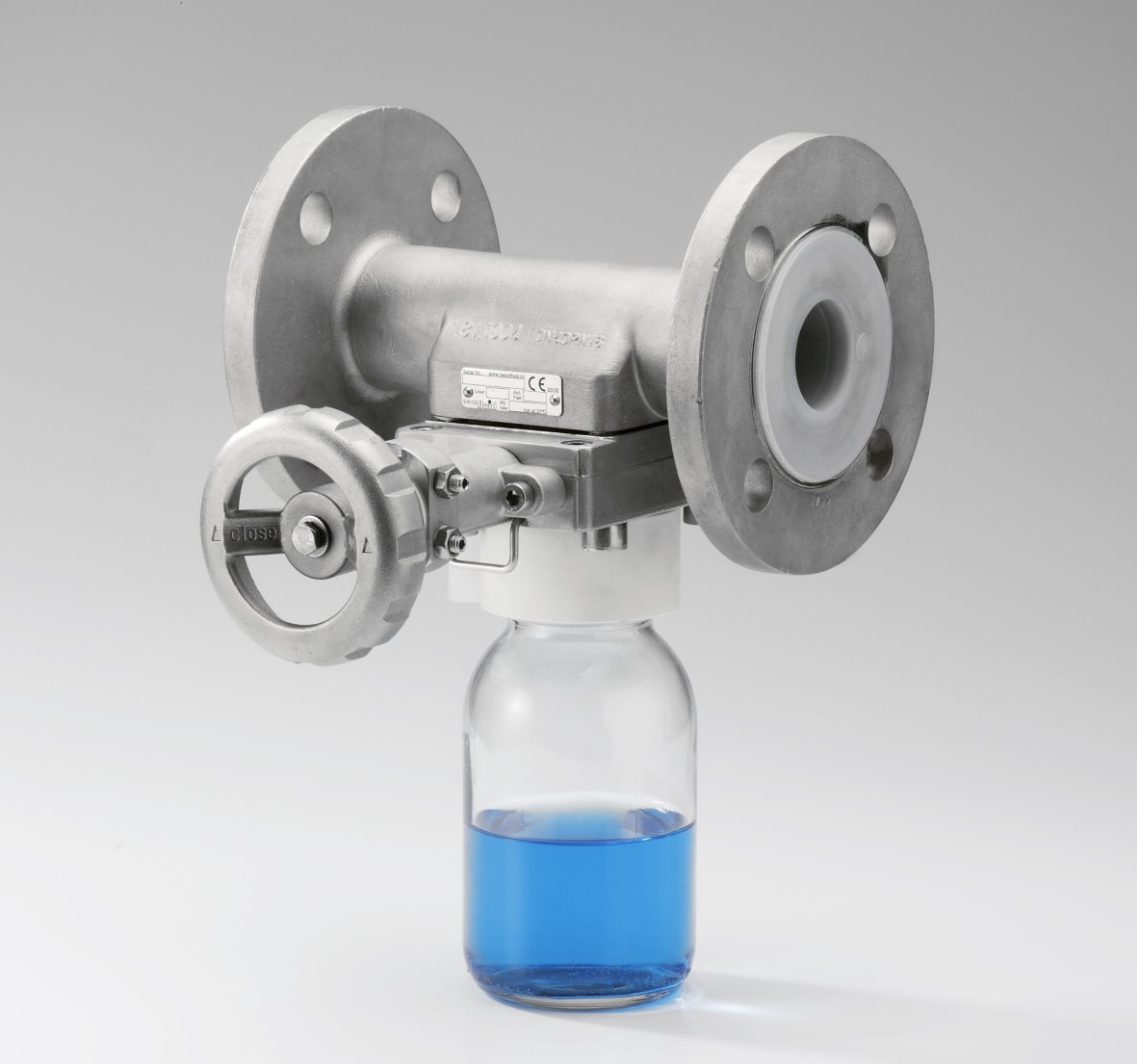

SSV Sampling Valves

Plastomer-lined or stainless steel, full port for safe and representative sampling of aggressive or toxic liquids out of piping systems and vessels, under pressure - without any process interruptions.

Technical Data

Nominal Sizes: DN15 - DN150 .
Flanges acc. to DIN PN10/16 , ANSI 150lbs
F/F acc. to EN558-1 range 1/3 , ASME B16.10
Bodies: Stainless steel castingCF-8M (1.4408)
Linings: PFA, PFA-AS (conductive)
Sealing cone/Valve seat: FFPM (Perfluor)/PTFE-T

Operating Conditions (depending on material selection)

Pressure: up to 16 bar (232 psi)
Temperature: -20°C (-4°F) up to+160°C (+320°F)

SIV Sampling Valves

Plastomer-lined or stainless steel Wafer-style or flanged type, for representative sampling of aggressive liquids out of pressurized pipelines or at vacuum conditions - without any process interruptions.

Technical Data

Nominal Sizes: DN15 - DN150 .
Flanges acc. to DIN PN10/16 , ANSI 150lbs
F/F acc. to EN 558-1 range 1/3 , ASME B16.10
Bodies: Stainless steel castingCF-8M (1.4408) or 1.4404
Linings: PFA, PFA-AS (conductive)
Spindle gasket: PTFE modified

Operating Conditions (depending on material selection)

Pressure: 1 mbar (0.014 psi)up to40 bar (580 psi)
Temperature: -40°C (-40°F) up to+230°C (+446°F)
