SAMPLING SYSTEMS

SRS Sampling Systems

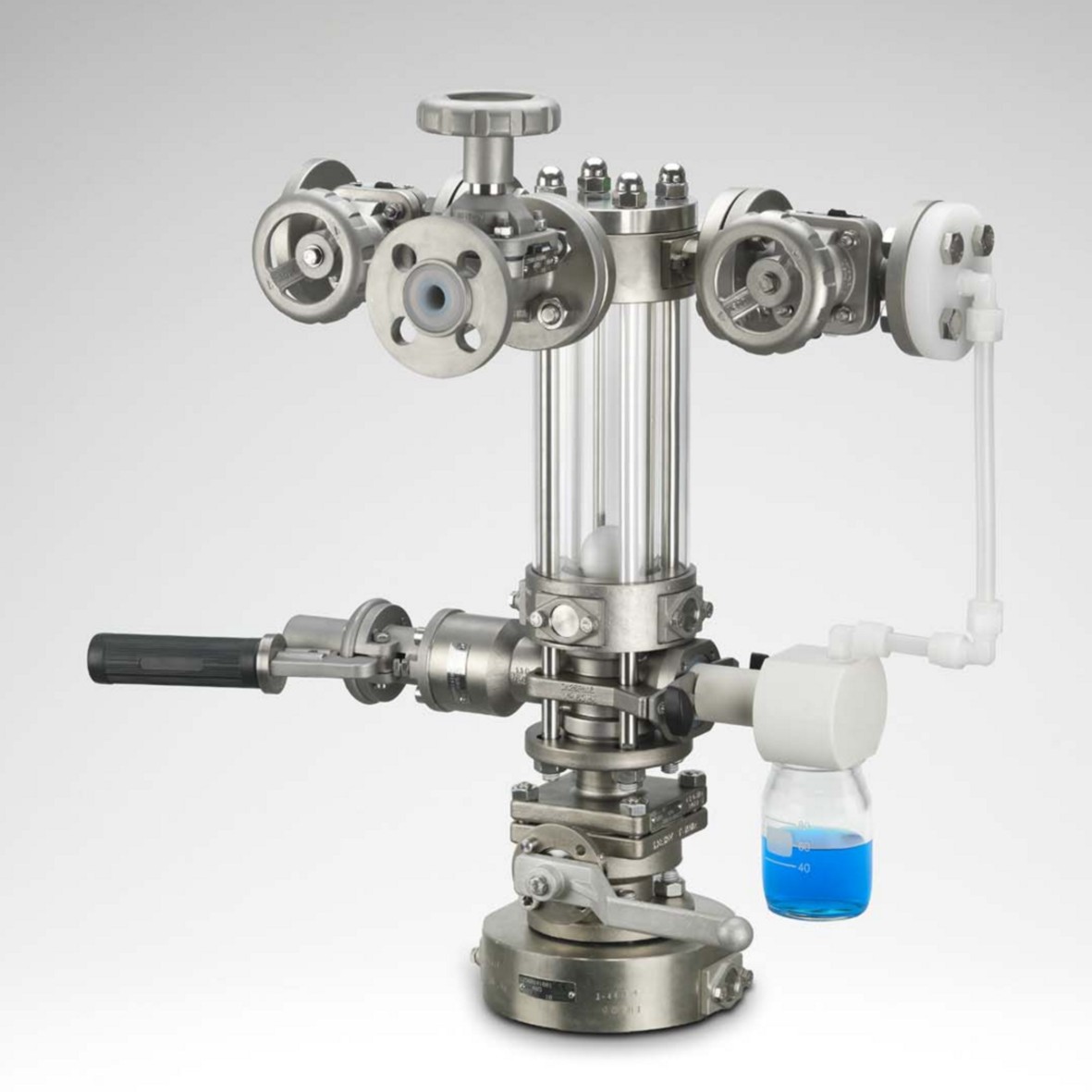

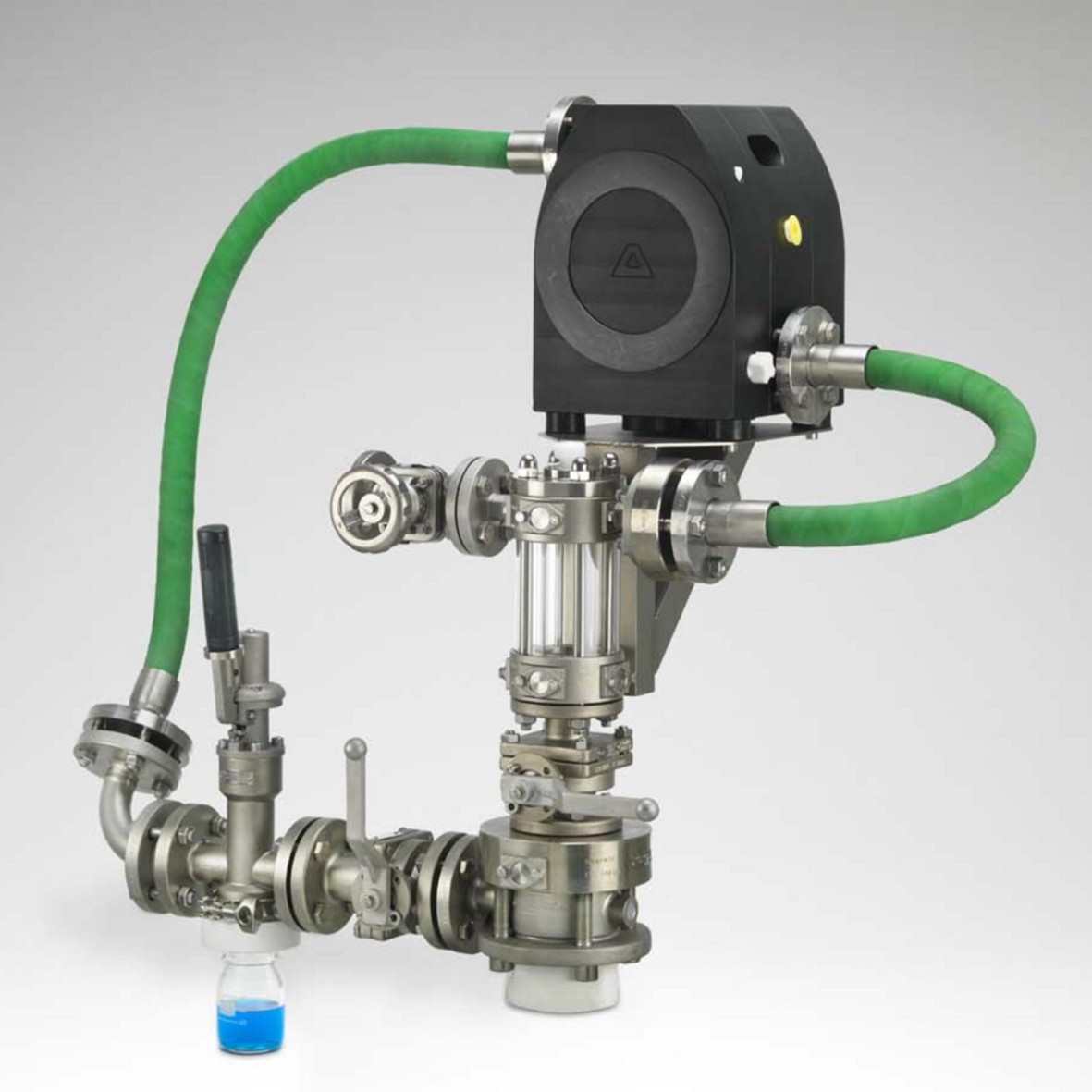

Plastomer-lined, manually operated for the safe, representative and closed sampling of liquid media out of reactors and vessels - quick and reliable, without any process interruptions. Plastomer-lined, with air driven diaphragm pump optional with integrated pH-/temperature/Redox measuring

Technical Data

Sizes Bottom Flange: DN25 - DN100 resp. 1 - 4
Flanges acc. to DIN PN10/16 resp. ANSI 150lbs
Linings: PFA, PFA-AS (anti-static)
Sight glass: Borosilicate
Hollow ball/Seat: PTFE/FFPM (Perfluor)
Sampling Volume Standard: 150/250 ml
Sampl. Volume Standard: 150/250ml (5.07/8.45 fl.oz.)
Pump: PTFE, PTFE-AS (conductive)

Operating Conditions (depending on material selection)

Pressure: 500 mbar (7.2 psi)up to 10 bar (145 psi)
Temperature: -40°C (-40°F) up to +180°C (+356°F)

Operating Conditions Pump

Pressure: max. 7 bar (102 psi)
Temperature: -5°C (23°F) up to +120°C (+248°F)
