CHECK VALVES

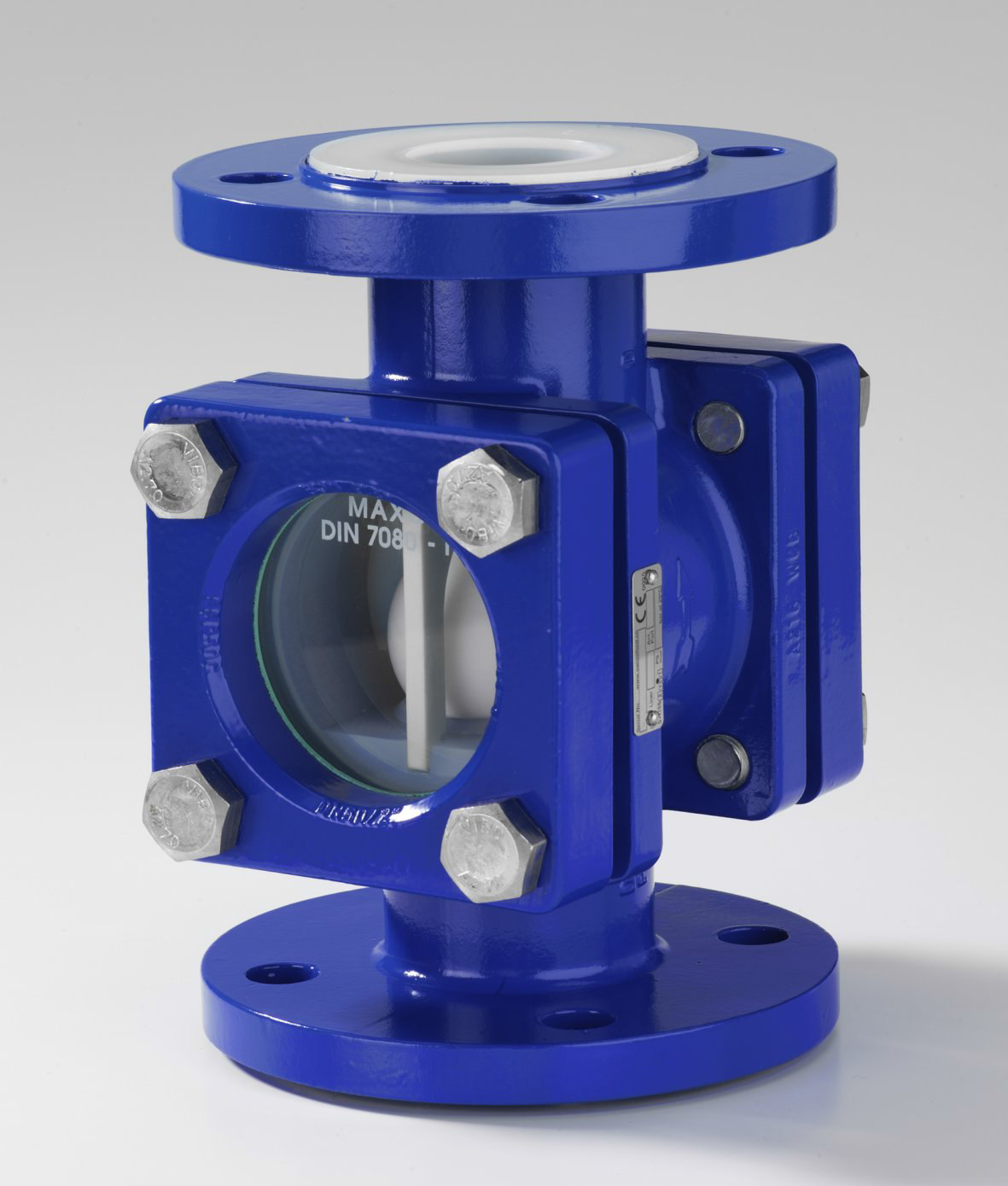

SBC Ball Check Valves

Plastomer-lined, with PTFE solid balls for safe flow control, with visual flow observation.

Technical Data

Nominal Sizes: DN15 - DN150.
Flanges according to DIN PN10/16 , ANSI 150lbs.
F/F acc. to EN 558-1 range 1 , ASME B16.10.
Bodies/covers: cast steel ASTM A216WCBor CF-8M.
Linings: PFA, PFA-AS (anti-static).
Glass plates: Borosilicate acc. to DIN 7080.
Gaskets:C-4400 asbestos-free.

Operating Conditions

(depending on material selection) Pressure: up to 10 bar (145 psi)

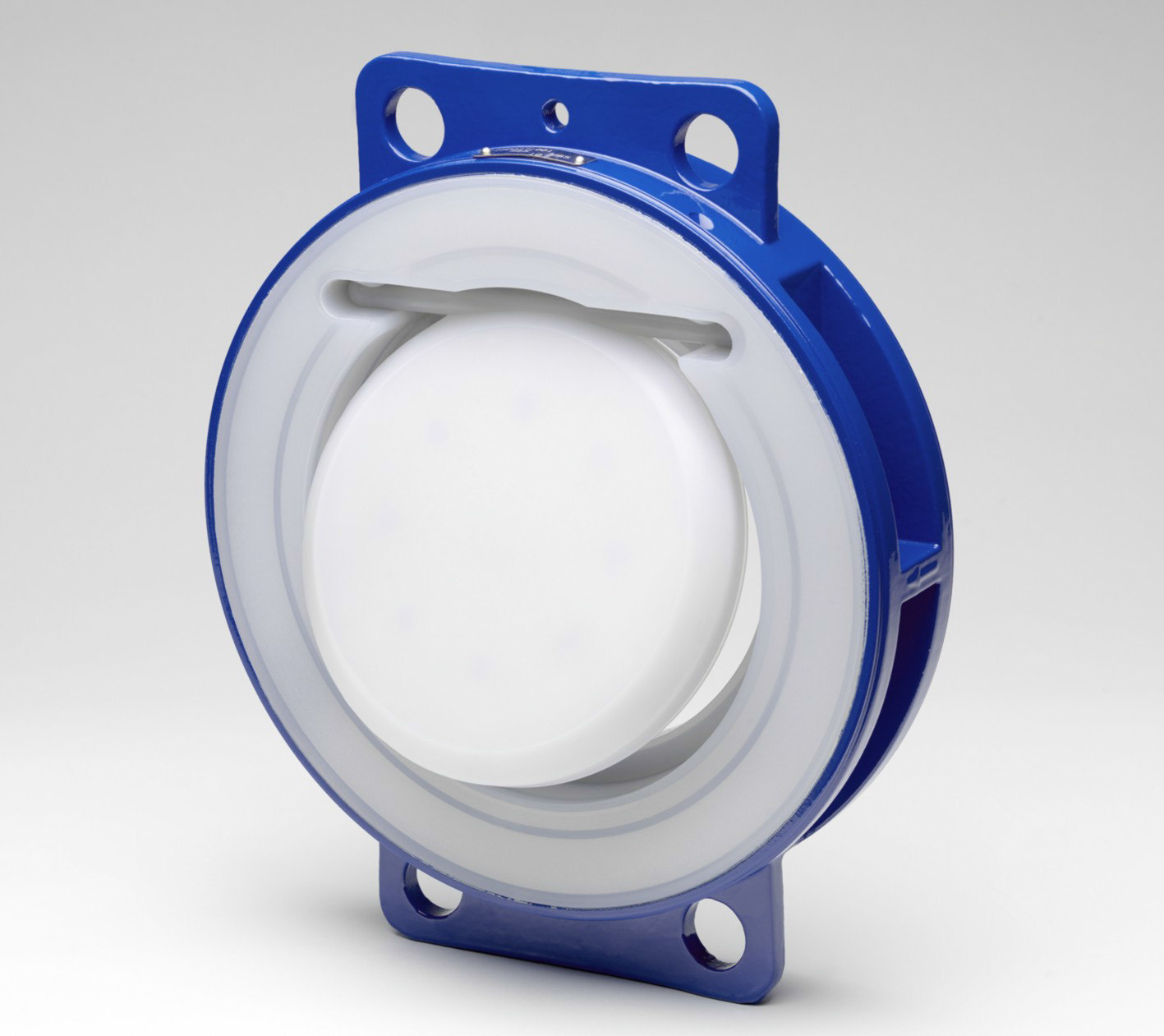

SSC Swing Check Valves

Plastomer-lined for safe non-return flow control of liquid process media.

Technical Data

Nominal Sizes: DN15 - DN150.
Flanges according to DIN PN10/16 , ANSI 150lbs.
F/F acc. to EN 558-1 range 1 , ASME B16.10.
Bodies/covers: cast steel ASTM A216WCBor CF-8M.
Linings: PFA, PFA-AS (anti-static).
Glass plates: Borosilicate acc. to DIN 7080.
Gaskets:C-4400 asbestos-free.

Operating Conditions (depending on material selection)

Pressure: up to 10 bar (145 psi)
Temperature: -40°C (-40°F) up to +200°C (+392°F)
